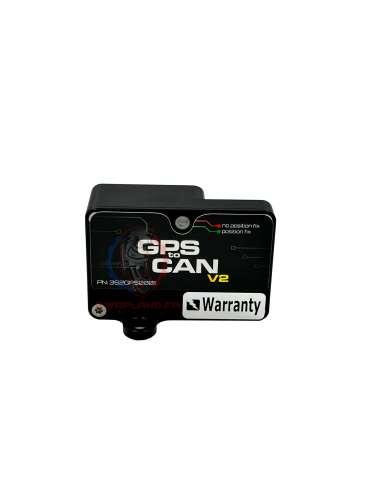

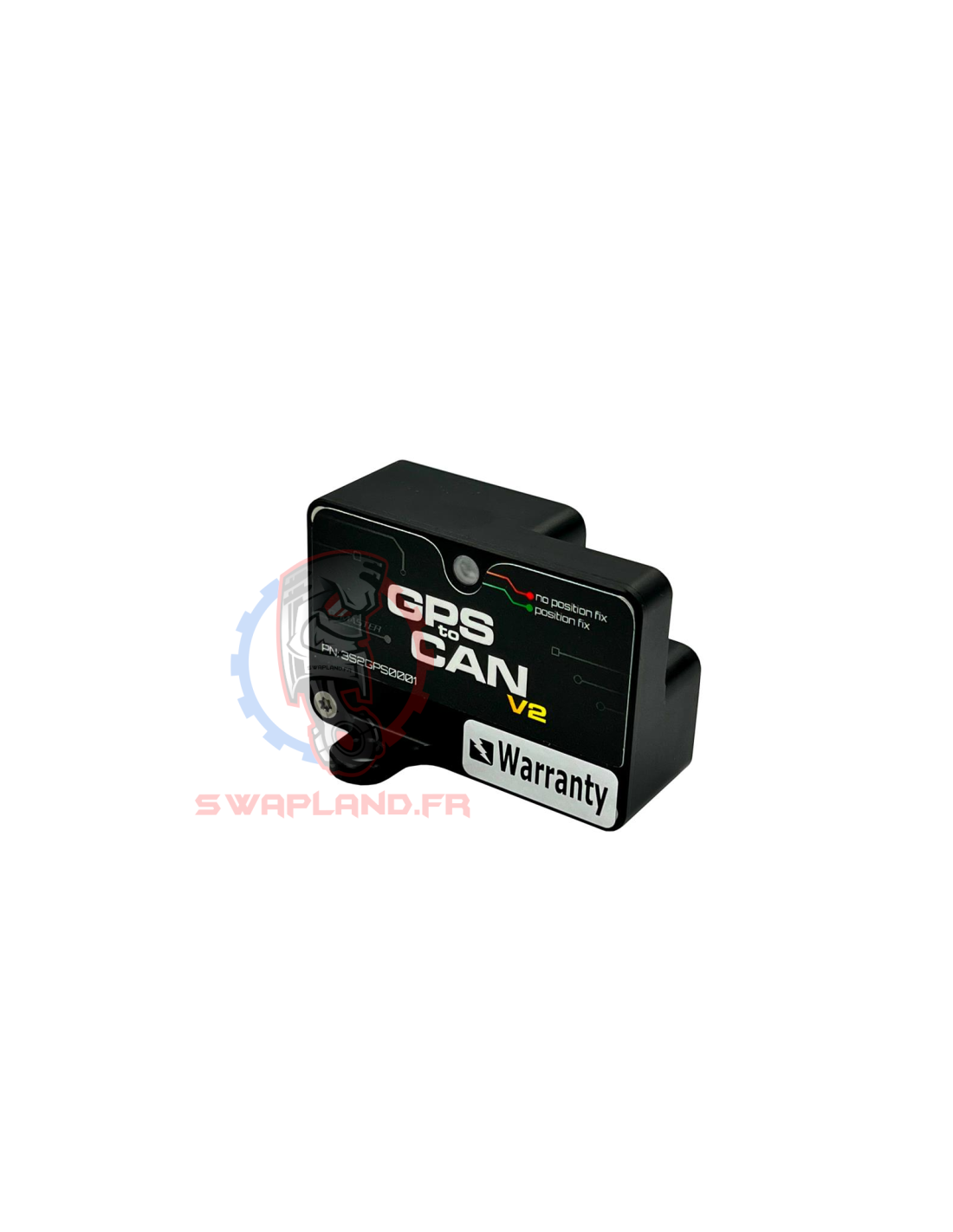

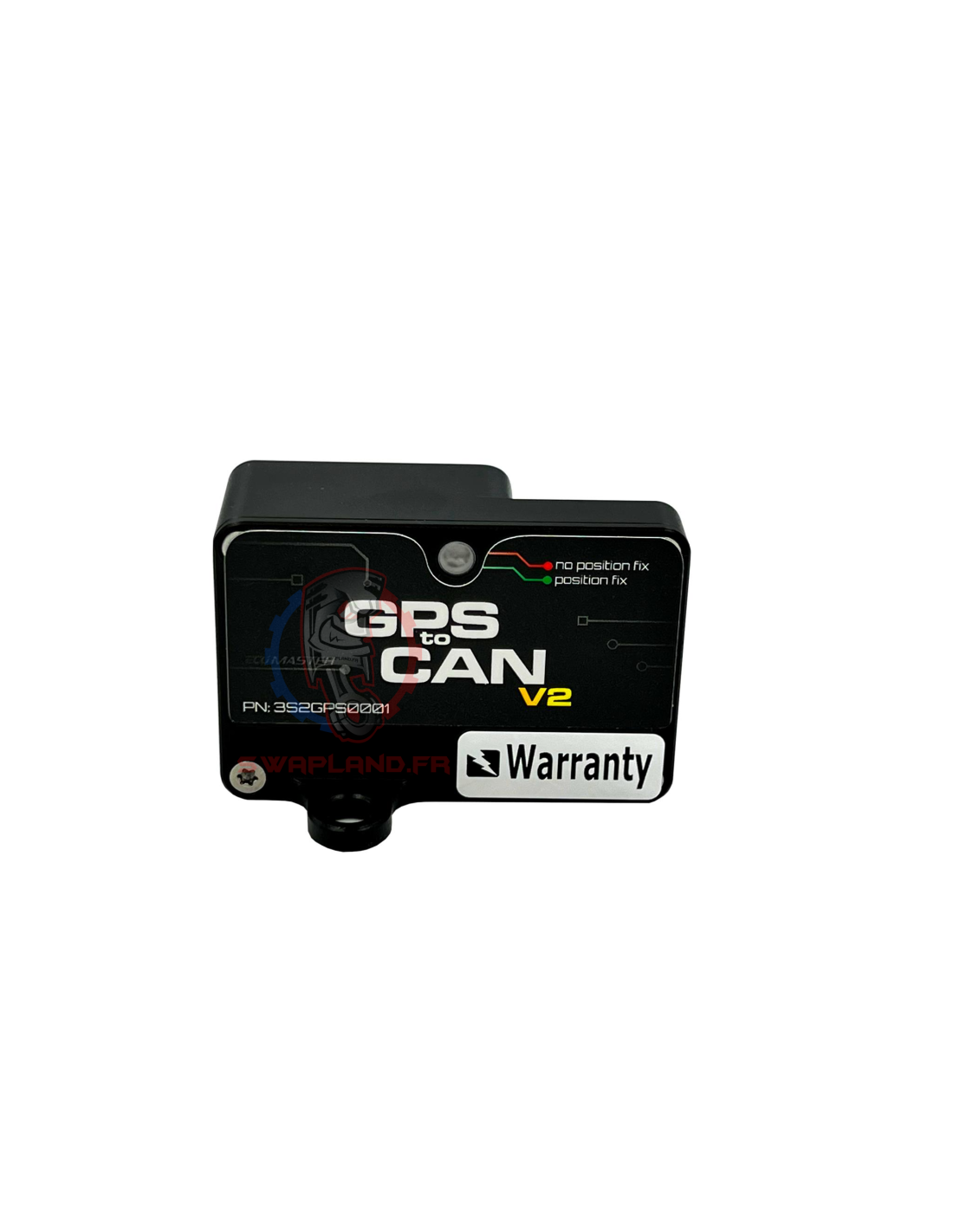

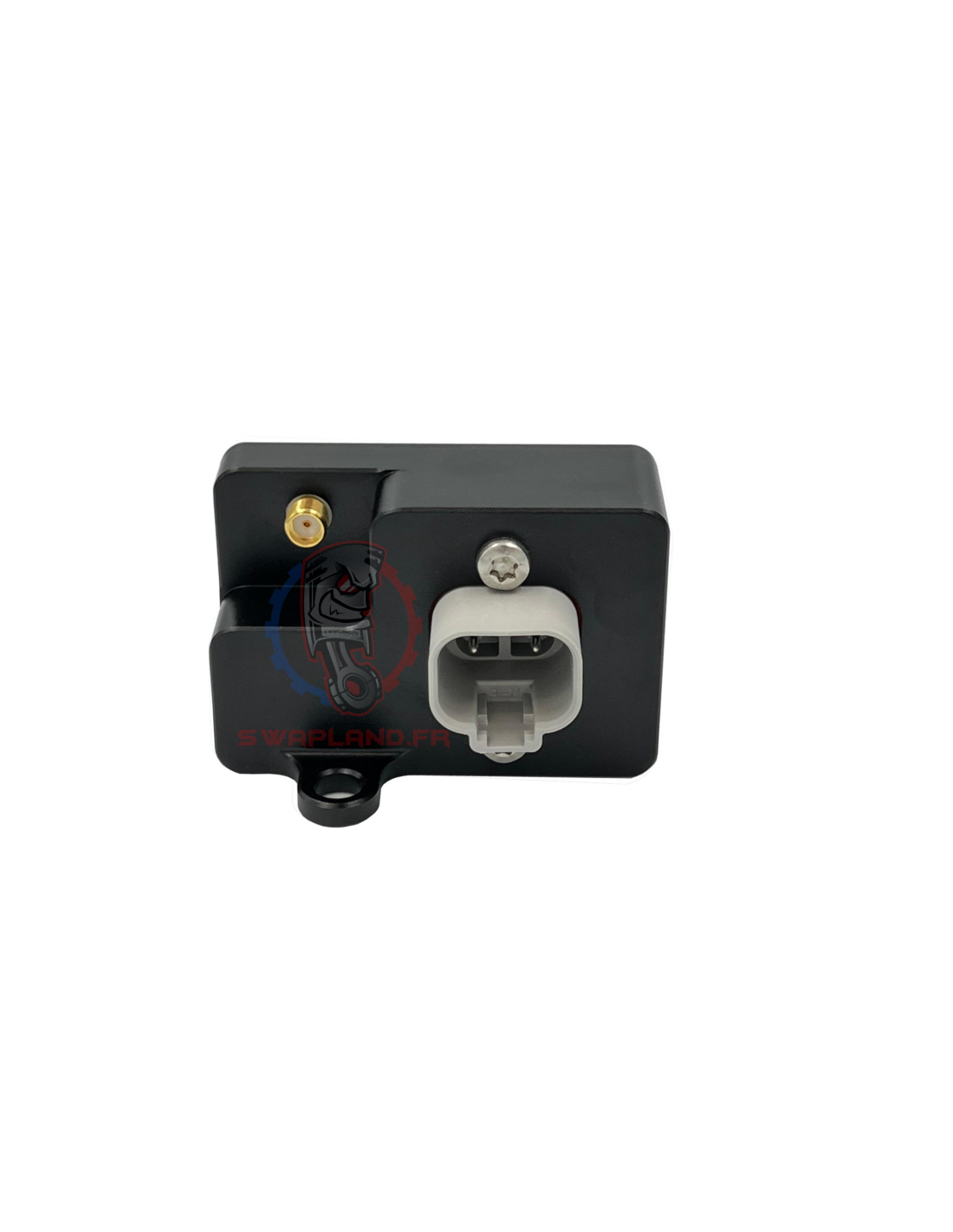

Ecumaster GPS to CAN V2
Ecumaster GPS to CAN V2
Ecumaster GPS to CAN V2
Ecumaster GPS to CAN V2
Ecumaster GPS to CAN V2
Ecumaster GPS to CAN V2
Ecumaster GPS to CAN V2
Ecumaster GPS to CAN V2

Ecumaster GPS to CAN V2

ECU534
Sur commande
321,95 €
TTC
Sur commande



Ecumaster GPS module assures high-accuracy position tracking with a 25 Hz update rate. The module can use four navigation systems at the same time: GPS, GLONASS, Galileo, and BeiDou. An external, active antenna with a magnetic base is included with the module.

Thanks to a built-in 3-axis accelerometer and gyroscope, the device can deliver information about speed, position, heading, altitude, accelerations, and angular velocities. All GPS data is transmitted via CAN bus.

The GPS module is intended to work with the ADU display/logger and allows real-time lap timing, predictive timing, as well as data analysis after the session with a track map visualization.

Description:

1x Ecumaster GPS to CAN V2

1x Mounting set with dampers

1x Grey connector 4pin with terminals

1x Antenna GPS A.166

1x Pinnout description
