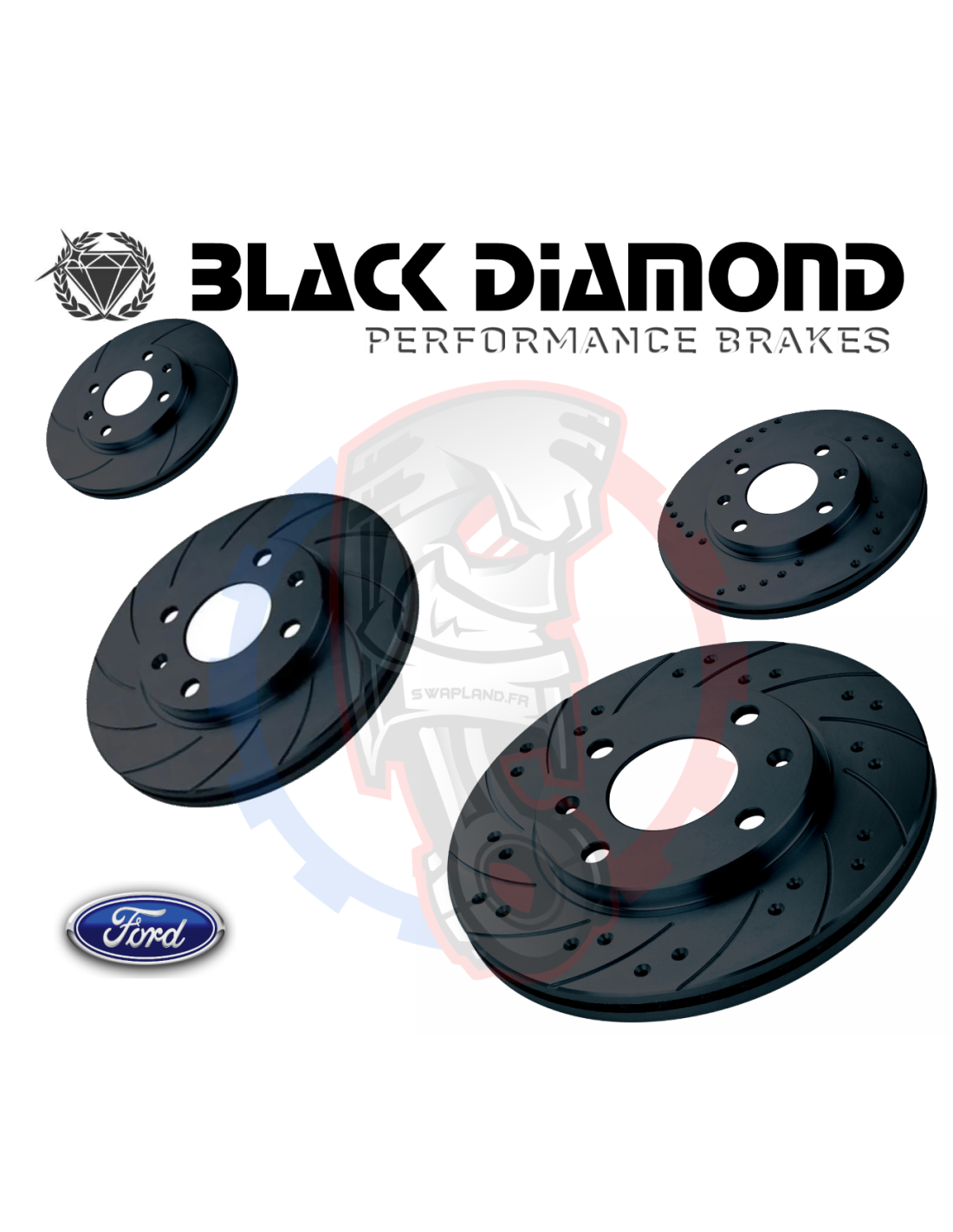

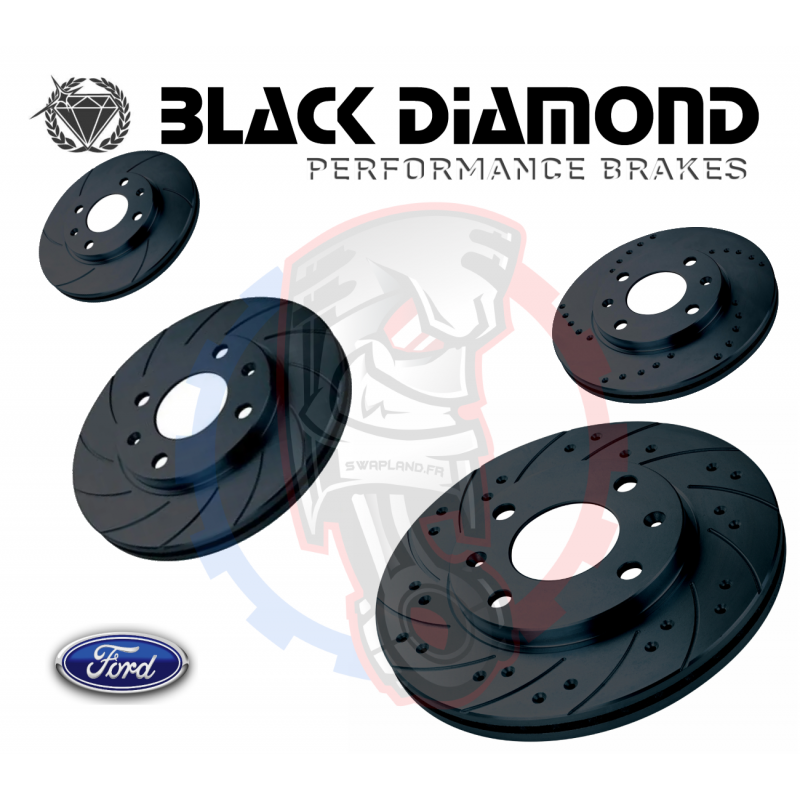

Détails sur les différents modèles de disques de frein performance Black Diamond pour FORD Focus :
G6: Disque de frein rainuré avec 6 rainures, ce qui permet d'augmenter légèrement le mordant du freinage.
G12: Disque de frein rainuré avec 12 rainures, ce qui permet d'optimiser au maximum la puissance de votre freinage.
CD: Disque de frein pointé, ce qui permet de diminuer la chauffe sur les gros freinages.
COM: Disque de frein rainuré et percé, ce qui permet d'augmenter la puissance de freinage et de diminuer la température. Simplement le top!
Veuillez repérer votre référence dans le tableau ci dessous, ensuite sélectionnez la dans le menu déroulant ainsi que le modèle de disque.
F-S: Disque avant plein
F-V: Disque avant ventilé
R-S: Disque arrière plein
R-V: Disque arrière ventilé
| Modèle | Type | cc | Année | Position | Référence | A | B | C | D | E | F |
| Focus (->05) | 1.4 16v | 1388cc | 98-05 | F-V | KBD 950 | 258 | 22 | 20 | 43,5 | 63,5 | 4 |
| Focus (->05) | 1.6 16v | 1596cc | 98-05 | F-V | KBD 950 | 258 | 22 | 20 | 43,5 | 63,5 | 4 |
| Focus (->05) | 1.8 16v | 1796cc | 98-05 | F-V | KBD 950 | 258 | 22 | 20 | 43,5 | 63,5 | 4 |
| Focus (->05) | 1.8 Turbo Diesel Di | 1753cc | 98-05 | F-V | KBD 950 | 258 | 22 | 20 | 43,5 | 63,5 | 4 |
| Focus (->05) | 1.8 TDCi | 1753cc | 01-05 | F-V | KBD 950 | 258 | 22 | 20 | 43,5 | 63,5 | 4 |
| Focus (->05) | 2.0 16v | 1989cc | 98-05 | F-V | KBD 950 | 258 | 22 | 20 | 43,5 | 63,5 | 4 |
| Focus (->05) | All Models Rear Disc (Except ST-170/RS) | 98-05 | R-S | KBD 313 | 253 | 10,1 | 8,9 | 33 | 63,5 | 4 | |
| Focus (->05) | ST-170 | 1988cc | 02-05 | F-V | KBD1214 | 300 | 24 | 22 | 44,5 | 63,5 | 4 |
| Focus (->05) | ST-170 Rear Disc | 02-05 | R-S | KBD1223 | 280 | 10 | 8,9 | 33 | 63,5 | 4 | |
| Focus (->05) | RS | 1988cc | 02-05 | F-V | KBD1183 | 324 | 28 | 26 | 52,7 | 63,5 | 4 |
| Focus (->05) | RS Rear Disc | 02-05 | R-S | KBD1385 | 280 | 10 | 8,5 | 42,5 | 63,5 | 4 | |
| Focus (05 ->) | 1.4 | 1388cc | 05 -> | F-V | KBD1258 | 278 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus (05 ->) | 1.6 | 1596cc | 05 -> | F-V | KBD1258 | 278 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus (05 ->) | 1.6 Estate Rear Disc (LX, Studio only) | 1596cc | 05 -> | R-S | KBD1297 | 265 | 11 | 9 | 41 | 63,5 | 5 |
| Focus (05 ->) | 1.6 Estate Rear Disc ( Not LX & Studio) | 1596cc | 05 -> | R-S | KBD1298 | 280 | 11 | 9 | 41 | 63,5 | 5 |
| Focus (05 ->) | 1.6 TDCi | 1560cc | 05 -> | F-V | KBD1258 | 278 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus (05 ->) | 1.6 TDCi Estate Rear Disc (LX, Studio only) | 1596cc | 05 -> | R-S | KBD1297 | 265 | 11 | 9 | 41 | 63,5 | 5 |
| Focus (05 ->) | 1.6 TDCi Estate Rear Disc (Not LX & Studio) | 1596cc | 05 -> | R-S | KBD1298 | 280 | 11 | 9 | 41 | 63,5 | 5 |
| Focus (05 ->) | 1.6 Rear Disc | 1596cc | 05 -> | R-S | KBD1297 | 265 | 11 | 9 | 41 | 63,5 | 5 |
| Focus (05 ->) | 1.6 Turbo (15/16" Wheels) | 1596cc | 05-12 | F-V | KBD1258 | 278 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus (05 ->) | 1.6 Turbo (17" Wheels) | 1596cc | 05-12 | F-V | KBD1296 | 300 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus (05 ->) | 1.6 Turbo Rear Disc | 1596cc | 05 -> | R-S | KBD1297 | 265 | 11 | 9 | 41 | 63,5 | 5 |
| Focus (05 ->) | 1.8 16v (278mm) | 1798cc | 05 -> | F-V | KBD1258 | 278 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus (05 ->) | 1.8 16v (300mm) | 1798cc | 05 -> | F-V | KBD1296 | 300 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus (05 ->) | 1.8 16v Rear Disc | 1798cc | 05 -> | R-S | KBD1298 | 280 | 11 | 9 | 41 | 63,5 | 5 |
| Focus (05 ->) | 1.8 TDCi | 1753cc | 05 -> | F-V | KBD1258 | 278 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus (05 ->) | 1.8 TDCi Estate Rear Disc (LX only) | 1753cc | 05 -> | R-S | KBD1297 | 265 | 11 | 9 | 41 | 63,5 | 5 |
| Focus (05 ->) | 1.8 TDCi Estate Rear Disc | 1753cc | 05 -> | R-S | KBD1298 | 280 | 11 | 9 | 41 | 63,5 | 5 |
| Focus (05 ->) | 2.0 16v (278mm) | 1999cc | 05 -> | F-V | KBD1258 | 278 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus (05 ->) | 2.0 16v (300mm) | 1999cc | 05 -> | F-V | KBD1296 | 300 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus (05 ->) | 2.0 16v Rear Disc | 1999cc | 05 -> | R-S | KBD1298 | 280 | 11 | 9 | 41 | 63,5 | 5 |
| Focus (05 ->) | 2.0 TDCi | 1998cc | 05 -> | F-V | KBD1296 | 300 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus (05 ->) | 2.0 TDCi Rear Disc | 1998cc | 05 -> | R-S | KBD1298 | 280 | 11 | 9 | 41 | 63,5 | 5 |
| Focus (05 ->) | ST 2.5 Turbo | 2522cc | 05 -> | F-V | KBD1386 | 320 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus (05 ->) | ST 2.5 Turbo Rear Disc | 2522cc | 05 -> | R-S | KBD1298 | 280 | 11 | 9 | 41 | 63,5 | 5 |
| Focus (05 ->) | RS 2.5 Turbo | 2521cc | 09 - 12 | F-V | KBD1820 | 336 | 28 | 26 | 52 | 63,5 | 5 |
| Focus (05 ->) | RS 2.5 Turbo Rear Disc | 09 - 12 | R-S | KBD1430 | 302 | 11 | 9,5 | 51 | 63,5 | 5+1 | |
| Focus (05 ->) | RS 500 Turbo | 2521cc | 09 - 12 | F-V | KBD1820 | 336 | 28 | 26 | 52 | 63,5 | 5 |
| Focus (05 ->) | RS 500 Turbo Rear Disc | 09 - 12 | R-S | KBD1430 | 302 | 11 | 9,5 | 51 | 63,5 | 5+1 | |
| Focus Mk3 (11 ->) | Electric | - | 13-> | F-V | KBD1745 | 278 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus Mk3 (11 ->) | 1.0 EcoBoost | 998cc | 11 -> | F-V | KBD1745 | 278 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus Mk3 (11 ->) | 1.5 Ecoboost (150hp) | 1499cc | 14-> | F-V | KBD1296 | 300 | 25 | 23 | 48 | 63,5 | 5 |
| Focus Mk3 (11 ->) | 1.5 TDCi | 1499cc | 14-> | F-V | KBD1296 | 300 | 25 | 23 | 48 | 63,5 | 5 |
| Focus Mk3 (11 ->) | 1.6 16v (Fitted 278mm Disc) | 1596cc | 11 -> | F-V | KBD1745 | 278 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus Mk3 (11 ->) | 1.6 16v (Fitted 300mm Disc) | 1596cc | 11 -> | F-V | KBD1296 | 300 | 25 | 23 | 48 | 63,5 | 5 |
| Focus Mk3 (11 ->) | 1.6 EcoBoost | 1596cc | 11 -> | F-V | KBD1296 | 300 | 25 | 23 | 48 | 63,5 | 5 |
| Focus Mk3 (11 ->) | 1.6 TDCi (Fitted 278mm Disc) | 1560cc | 11 -> | F-V | KBD1745 | 278 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus Mk3 (11 ->) | 1.6 TDCi (Fitted 300mm Disc) | 1560cc | 11 -> | F-V | KBD1296 | 300 | 25 | 23 | 48 | 63,5 | 5 |
| Focus Mk3 (11 ->) | 2.0 TDCi (Fitted 278mm Disc) | 1997cc | 11 -> | F-V | KBD1745 | 278 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus Mk3 (11 ->) | 2.0 TDCi (Fitted 300mm Disc) | 1997cc | 11 -> | F-V | KBD1296 | 300 | 25 | 23 | 48 | 63,5 | 5 |
| Focus Mk3 (11 ->) | ST 2.0 Turbo | 1999cc | 11 -> | F-V | KBD1857 | 320 | 25 | 23 | 48,8 | 63,5 | 5 |
| Focus Mk3 (11 ->) | ST 2.0 TDCI (185hp) | 1999cc | 11 -> | F-V | KBD1857 | 320 | 25 | 23 | 48,8 | 63,5 | 5 |
| Focus Mk3 (11 ->) | Electric | 13-> | F-V | KBD1745 | 278 | 25 | 23 | 48,5 | 63,5 | 5 | |
| Focus Mk3 (11 ->) | All Models Rear Disc | 11 -> | R-S | KBD1707 | 270 | 11 | 9 | 42,4 | 63,4 | 5 | |
| Focus Mk3 (11 ->) | RS 2.3 Turbo | 2261cc | 15-> | F-V | KBD1952 | 350 | 25 | 23 | 48,8 | 63,5 | 5 |
| Focus Mk3 (11 ->) | RS 2.3 Turbo Rear Disc | 15-> | R-S | KBD1958 | 302 | 11 | 9 | 41 | 63,5 | 5 | |
| Focus MK4 (18->) | 1.0 Ecoboost | 999cc | 18-> | F-V | KBD3113 | 282 | 25 | 23 | 50 | 64 | 5 |
| Focus MK4 (18->) | 1.5 Ecoboost | 1496cc | 18-> | F-V | KBD3113 | 282 | 25 | 23 | 50 | 64 | 5 |
| Focus MK4 (18->) | 1.5 EcoBlue | 1499cc | 18-> | F-V | KBD3113 | 282 | 25 | 23 | 50 | 64 | 5 |
| Focus MK4 (18->) | 2.0 EcoBlue Disc 282 mm | 1995cc | 18-> | F-V | KBD3113 | 282 | 25 | 23 | 50 | 64 | 5 |
| Focus MK4 (18->) | All Models Rear Discs | 18-> | R-S | KBD2105 | 271 | 11 | 10 | 41 | 64 | 5 | |
| Focus MK4 (18->) | 2.0 EcoBlue (Fitted 308mm Disc) | 1995cc | 18-> | F-V | KBD2094 | 308 | 27 | 25 | 50,5 | 63,5 | 5 |
| Focus MK4 (18->) | ST 2.3 Ecoboost Rear Disc | 2261cc | 04/19-> | R-S | KBD1958 | 302 | 11 | 9 | 41 | 63,5 | 5 |
| Focus C Max | 1.6 16v (15" Wheels) | 1596cc | 03-10 | F-V | KBD1258 | 278 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus C Max | 1.6 16v (16" Wheels) | 1596cc | 03-10 | F-V | KBD1296 | 300 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus C Max | 1.6 TDCi (15" Wheels) | 1560cc | 03-10 | F-V | KBD1258 | 278 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus C Max | 1.6 TDCi (16" Wheels) | 1560cc | 03-10 | F-V | KBD1296 | 300 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus C Max | 1.8 16v (15" Wheels) | 1796cc | 03-10 | F-V | KBD1258 | 278 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus C Max | 1.8 16v (16" Wheels) | 1796cc | 03-10 | F-V | KBD1296 | 300 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus C Max | 2.0 16v | 1999cc | 03-10 | F-V | KBD1296 | 300 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus C Max | 2.0 TDCi | 1998cc | 03-10 | F-V | KBD1296 | 300 | 25 | 23 | 48,5 | 63,5 | 5 |
| Focus C Max | All Models Rear Disc (15" wheels) | 03-05 | R-S | KBD1297 | 265 | 11 | 9 | 41 | 63,5 | 5 | |
| Focus C Max | All Models Rear Disc (15" wheels) | 05-10 | R-S | KBD1297 | 265 | 11 | 9 | 41 | 63,5 | 5 | |
| Focus C Max | All Models Rear Disc (16" wheels) | 03-05 | R-S | KBD1298 | 280 | 11 | 9 | 41 | 63,5 | 5 | |
| Focus C Max | All Models Rear Disc (16" wheels) | 05-10 | R-S | KBD1298 | 280 | 11 | 9 | 41 | 63,5 | 5 |
