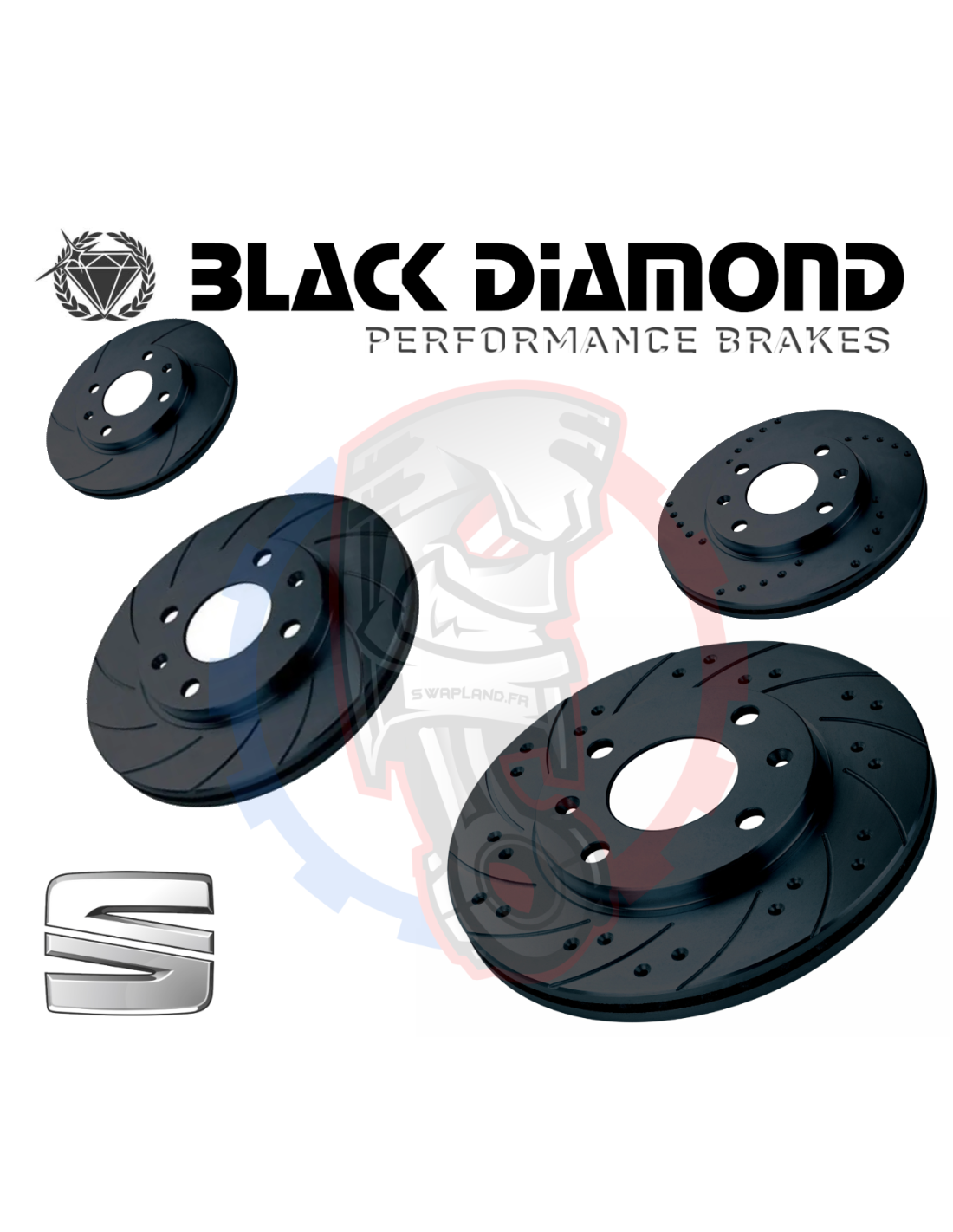

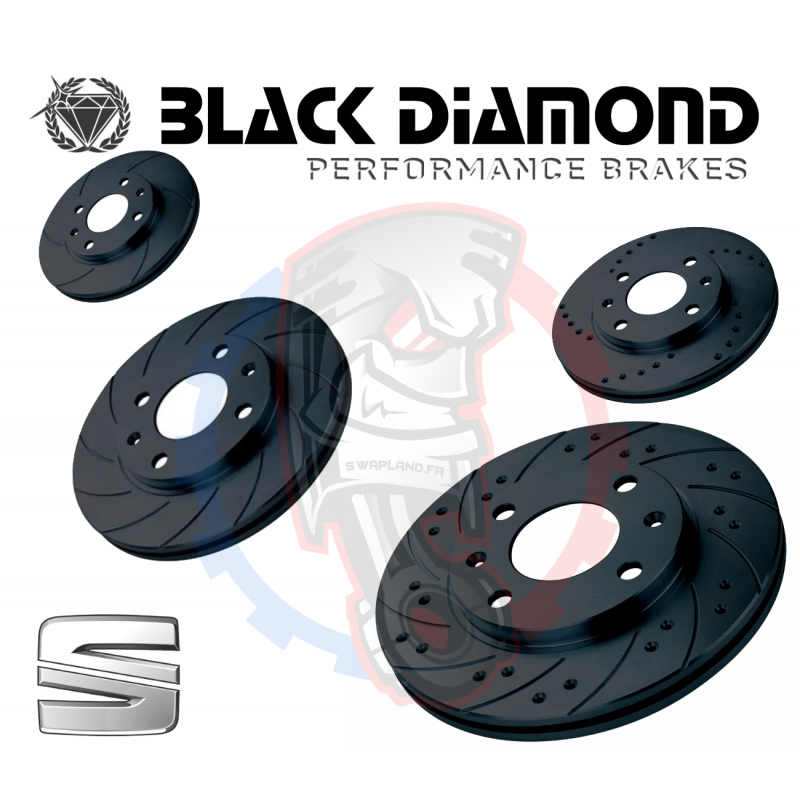

Détails sur les différents modèles de disques de frein performance Black Diamond pour SEAT Leon :
G6: Disque de frein rainuré avec 6 rainures, ce qui permet d'augmenter légèrement le mordant du freinage.
G12: Disque de frein rainuré avec 12 rainures, ce qui permet d'optimiser au maximum la puissance de votre freinage.
CD: Disque de frein pointé, ce qui permet de diminuer la chauffe sur les gros freinages.
COM: Disque de frein rainuré et percé, ce qui permet d'augmenter la puissance de freinage et de diminuer la température. Simplement le top!
Veuillez repérer votre référence dans le tableau ci dessous, ensuite sélectionnez la dans le menu déroulant ainsi que le modèle de disque.
F-S: Disque avant plein
F-V: Disque avant ventilé
R-S: Disque arrière plein
R-V: Disque arrière ventilé
| Modèle | Type | cc | Année | Position | Référence | A | B | C | D | E | F | nota |
| Leon (1N1) | 1.4 16v | 1391cc | 00-9/05 | F-V | KBD 874 | 256 | 22 | 19 | 37 | 65 | 5+1 | |
| Leon (1N1) | 1.6 16v | 1595cc | 00-9/05 | F-V | KBD 874 | 256 | 22 | 19 | 37 | 65 | 5+1 | |
| Leon (1N1) | 1.8 20v | 1781cc | 00-9/05 | F-V | KBD 876 | 280 | 22 | 19 | 35 | 65 | 5+1 | |
| Leon (1N1) | 1.8 Turbo 20v | 1781cc | 00-9/05 | F-V | KBD 875 | 288 | 25 | 22 | 34 | 65 | 5+1 | |
| Leon (1N1) | 1.8 Turbo 20v 4WD | 1781cc | 00-9/05 | F-V | KBD 875 | 288 | 25 | 22 | 34 | 65 | 5+1 | |
| Leon (1N1) | 1.9 Diesel SDi | 1896cc | 00-9/05 | F-V | KBD 874 | 256 | 22 | 19 | 37 | 65 | 5+1 | |
| Leon (1N1) | 1.9 TDi (90/110/130hp) | 1896cc | 00-9/05 | F-V | KBD 876 | 280 | 22 | 19 | 35 | 65 | 5+1 | |
| Leon (1N1) | 1.9 TDi (150hp) | 1896cc | 01-9/05 | F-V | KBD 875 | 288 | 25 | 22 | 34 | 65 | 5+1 | |
| Leon (1N1) | 1.8 Turbo 20v Cupra | 1781cc | 00-9/05 | F-V | KBD 971 | 312 | 25 | 23 | 34 | 65 | 5+5 | |
| Leon (1N1) | Cupra R 1.8 Turbo 20v (17" wheels) | 1781cc | 2/02-9/05 | F-V | KBD 971 | 312 | 25 | 23 | 34 | 65 | 5+5 | |
| Leon (1N1) | Cupra R 1.8 Turbo 20v (18" wheels) | 1781cc | 2/02-9/05 | F-V | KBD1490 | 323 | 28 | 26 | 34 | 65 | 5+5 | W/O WI |
| Leon (1N1) | Cupra R 1.8 Turbo 20v (18" wheels) | 1781cc | 2/02-9/05 | F-V | KBD1490 | 323 | 28 | 26 | 34 | 65 | 5+5 | WITH WI |
| Leon (1N1) | Cupra 4 2.8 V6 4WD | 2792cc | 01-9/05 | F-V | KBD 971 | 312 | 25 | 23 | 34 | 65 | 5+5 | |
| Leon (1N1) | All Models Rear Disc (Solid Disc) | 00-9/05 | R-S | KBD 877 | 232 | 9 | 7 | 40 | 65 | 5+1 | ||
| Leon (1N1) | All Models Rear Disc (Vented Disc) | 01-9/05 | R-V | KBD 972 | 256 | 22 | 20 | 36 | 65 | 5+1 | ||
| Leon (1P1) | 1.2 TSi | 1197cc | 10-> | F-V | KBD1293 | 280 | 22 | 19 | 50 | 65 | 5+5 | |
| Leon (1P1) | 1.4 16v | 10/05 -> | F-V | KBD1293 | 280 | 22 | 19 | 50 | 65 | 5+5 | ||
| Leon (1P1) | 1.4 TSi | 1390cc | 07-12 | F-V | KBD1292 | 288 | 25 | 22 | 50 | 65 | 5+5 | |
| Leon (1P1) | 1.6 16v | 10/05 -> | F-V | KBD1293 | 280 | 22 | 19 | 50 | 65 | 5+5 | ||
| Leon (1P1) | 1.6 TDi | 1598cc | 10-13 | F-V | KBD1293 | 280 | 22 | 19 | 50 | 65 | 5+5 | |
| Leon (1P1) | 1.8 Turbo | 1798cc | 10/05 -> | F-V | KBD1353 | 312 | 25 | 23 | 50 | 65 | 5 | |
| Leon (1P1) | 2.0 TSi | 1984cc | 05-13 | F-V | KBD1353 | 312 | 25 | 23 | 50 | 65 | 5 | |
| Leon (1P1) | 2.0 FSi | 10/05 -> | F-V | KBD1292 | 288 | 25 | 22 | 50 | 65 | 5+5 | ||
| Leon (1P1) | 2.0 TFSi | 1984cc | 05-13 | F-V | KBD1353 | 312 | 25 | 23 | 50 | 65 | 5 | |
| Leon (1P1) | 2.0 Turbo FR (185bhp) | 1984cc | 10/05 -> | F-V | KBD1353 | 312 | 25 | 23 | 50 | 65 | 5 | |
| Leon (1P1) | 1.9 TD (90) | 1896cc | 10/05 -> | F-V | KBD1292 | 288 | 25 | 22 | 50 | 65 | 5+5 | |
| Leon (1P1) | 1.9 TD (90) | 1896cc | 08 -> | F-V | KBD1293 | 280 | 22 | 19 | 50 | 65 | 5+5 | |
| Leon (1P1) | 1.9 TD (105) | 1896cc | 10/05 -> | F-V | KBD1293 | 280 | 22 | 19 | 50 | 65 | 5+5 | |
| Leon (1P1) | 1.9 TD (105) | 1896cc | 10/05 -> | F-V | KBD1292 | 288 | 25 | 22 | 50 | 65 | 5+5 | |
| Leon (1P1) | 2.0 TD (140hp) 280mm Fitted Disc | 10/05 -> | F-V | KBD1293 | 280 | 22 | 19 | 50 | 65 | 5+5 | ||
| Leon (1P1) | 2.0 TD (140hp) 288mm Fitted Disc | 10/05 -> | F-V | KBD1292 | 288 | 25 | 22 | 50 | 65 | 5+5 | ||
| Leon (1P1) | 2.0 TD FR (170hp) 288mm Fitted Disc | 10/05 -> | F-V | KBD1292 | 288 | 25 | 22 | 50 | 65 | 5+5 | ||
| Leon (1P1) | 2.0 TD FR (170hp) 312mm Fitted Disc | 10/05 -> | F-V | KBD1353 | 312 | 25 | 23 | 50 | 65 | 5 | ||
| Leon (1P1) | All Models Rear Disc Fitted 255mm | 10/05 -> | R-S | KBD1294 | 255 | 10 | 8 | 51 | 65 | 5+5 | ||
| Leon (1P1) | All Models Fitted 272mm Rear Disc | 09-> | R-S | KBD1793 | 272 | 9,7 | 8 | 48,2 | 65 | 9+1 | ||
| Leon (1P1) | 2.0 Turbo FR (200bhp) | 1984cc | 10/05 -> | F-V | KBD1353 | 312 | 25 | 23 | 50 | 65 | 5 | |
| Leon (1P1) | 2.0 Turbo Cupra (240bhp) | 1984cc | 10/05 -> | F-V | KBD1330 | 345 | 30 | 28 | 50 | 65 | 5 | |
| Leon (1P1) | 2.0 Turbo FR(200) & Cupra (240) Rear | 10/05 -> | R-S | KBD1354 | 282 | 12 | 10 | 48 | 65 | 5 | ||
| Leon (5F) | 1.2 TSi 105 | 1197cc | 12 -> | F-V | KBD1935 | 276 | 24 | 21 | 50 | 65 | 5+4 | |
| Leon (5F) | 1.2 TSi 110 | 1197cc | 12 -> | F-V | KBD1292 | 288 | 25 | 22 | 50 | 65 | 5+1 | |
| Leon (5F) | 1.4 TSi 125 | 1395cc | 12 -> | F-V | KBD1292 | 288 | 25 | 22 | 50 | 65 | 5+1 | |
| Leon (5F) | 1.4 TSi 140 | 1395cc | 12 -> | F-V | KBD1292 | 288 | 25 | 22 | 50 | 65 | 5+1 | |
| Leon (5F) | 1.4 TSi 150 | 1395cc | 12 -> | F-V | KBD1292 | 288 | 25 | 22 | 50 | 65 | 5+1 | |
| Leon (5F) | 1.6 TDi 105 | 1598cc | 12 -> | F-V | KBD1935 | 276 | 24 | 21 | 50 | 65 | 5+4 | |
| Leon (5F) | 1.6 TDi 110 | 1598cc | 12 -> | F-V | KBD1292 | 288 | 25 | 22 | 50 | 65 | 5+1 | |
| Leon (5F) | All Above Models Fitted 253mm Rear Disc | 12 -> | R-S | KBD1294 | 253 | 10 | 8 | 51 | 65 | 5+1 | ||
| Leon (5F) | All Models Fitted 272mm Rear Discs | 12-> | R-S | KBD1793 | 272 | 9,7 | 8 | 48,2 | 65 | 5+1 | TRW | |
| Leon (5F) | All Models Fitted 272mm Rear Discs | 12-> | R-S | KBD1793 | 272 | 9,7 | 8 | 48,2 | 65 | 5+1 | ATE | |
| Leon (5F) | 1.8 TSi | 1798cc | 13 -> | F-V | KBD1353 | 312 | 25 | 23 | 50 | 65 | 5+1 | |
| Leon (5F) | 1.8 TSi Rear disc | 13 -> | R-S | KBD1793 | 272 | 9,7 | 8 | 48,2 | 65 | 5+1 | ||
| Leon (5F) | 2.0 TDi 150 | 1968cc | 12 -> | F-V | KBD1292 | 288 | 25 | 22 | 50 | 65 | 5+1 | |
| Leon (5F) | 2.0 TDi 150 Rear Disc | 12 -> | R-S | KBD1294 | 253 | 10 | 8 | 51 | 65 | 5+1 | ||
| Leon (5F) | 2.0 TDi 184 | 1968cc | 12 -> | F-V | KBD1353 | 312 | 25 | 23 | 50 | 65 | 5+1 | |
| Leon (5F) | 2.0 TDi 184 Rear Disc | 12 -> | R-S | KBD1793 | 272 | 9,7 | 8 | 48,2 | 65 | 5+1 | ||
| Leon (5F) | 2.0 Cupra | 1984cc | 13 -> | F-V | KBD1807 | 340 | 30 | 27 | 48,3 | 65 | 5+1 | |
| Leon (5F) | 2.0 Cupra Rear Disc | 13 -> | R-V | KBD1471 | 310 | 22 | 20 | 49 | 65 | 5+1 |
